Home Tab in Microsoft Excel 2007
The Home Tab in Microsoft Excel 2007 has a lot of
functionality for number crunching built right into it.
You can do things like formatting, alignment, inserting
and deleting rows or columns, sorting and filtering
numbers, applying styles and formatting effects, finding
and replacing data and much more using the Tab. The
Home Tab has the following groups that you can
utilize:
In order to understand some of these
commands and functionality, we will be using a Grade Workbook
from one of my prior classes. So let us jump right into
it and start using the Home Tab in Excel
2007.
Before we begin here is a screen shot of
the student grades data that we will be using for
practice.
|
|
|
The first group is the Clipboard and it has commonly
used commands like Cut, Copy and Paste. Using these
commands you can remove text from one area of your Microsoft
Excel sheet to another. When you use the Cut option, it
removes the source text. However when you use Copy
option, it leaves the source text in place. Using the
Paste command, you can then insert the clipboard text into the
new location.
Using these commands, you can also copy formulas
and computed data from one area of the Excel worksheet
to another. In our case we have calculated the average of
the Midterm test scores in cell E16. We will
cover how to compute the average in a later lesson. We would like to
copy this formula and can use it for the Final test scores
also. How do we do that?
Click on the cell E16 and
you will, notice that in the formula bar (in red rectangle) we
have the formula =AVERAGE(E6:E15)
After you have selected the cell, click on copy command in
the clipboard group. This is shown in the screen capture.
|
|
Next we
would like to use the same formula for the Final test scores
in column H. You can click in cell H16, and then click
on Paste command from the clipboard group. This will
copy the average formula to cell H16 and compute the average
for all the final test scores.

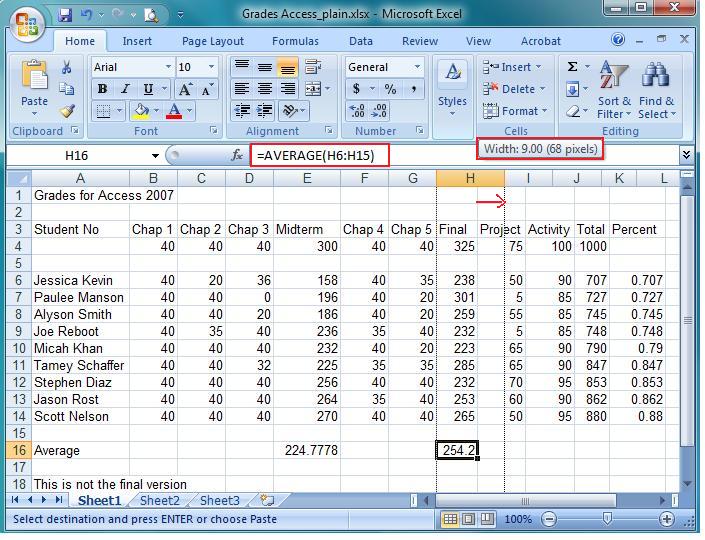

I also went
ahead and
changed the column
width to nine characters or 68 pixels so we can
see the average score a little clearly. We will cover changing column
width in a different Excel tutorial. This is shown in
the two screen shots below.
|
|
|
Moving onto the font group, here you can control the font
properties of your text. You can use drop down lists to
change the font type and font size. You can do actions
like bold, italicize and underline text.
Let us say that for our Grades Excel Workbook, we need
to change the size and font of text Grades for
Access 2007. Before I do this I need to adjust
the first row height to something like 30 pixels. The
easiest way to adjust row height in Microsoft Excel is to
select the row header [red circle], right click on the mouse
and then select a row height.
These steps are
illustrated in the figure below.
|
|
I selected 30 pixels for my row height.

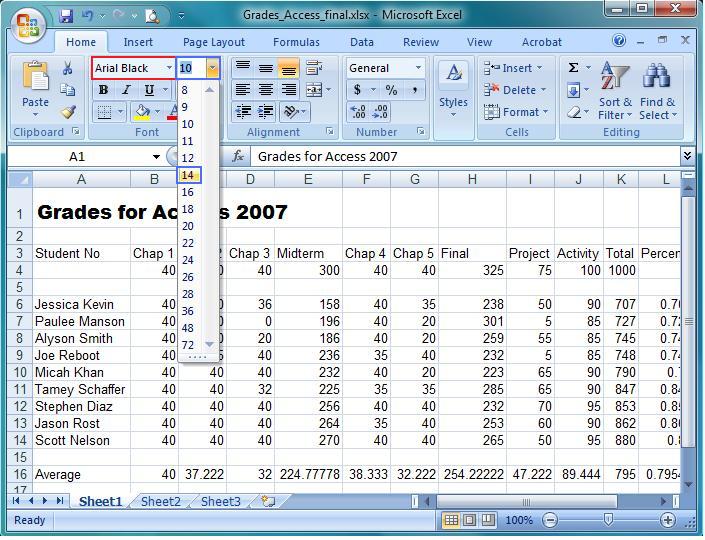

Next I went ahead and selected the text in cell A1
and then from Font type drop down chose Arial black. In
addition I used the font size dropdown in the Font group to choose
size 14. These two actions helped me emphasize the
title text of my excel workbook.
I have included
the screen shot for your review.
|
|
We would also like to change
rows 3 and 4 which include my class assignments, projects and
tests headings to maybe Bold. Let us show you the quickest
way to do just that. Using the left mouse you can
highlight both the rows by selecting the row headers (red
ovals). Next you can click on the bold button on the
font group to highlight the text.
This is shown
in the figure below where the selected rows are now in
Bold.
|
|
One last
thing I want to do using the font group in Excel 2007 is to
change the background color and font color for my students
names. I want to use a yellow background and change the
text to let's say red.
In order to achieve this, I need to select the student names
from cells A6 through A14. I can either use the mouse or
the keyboard to do this. I prefer to use the keyboard so
I will click on a A6, hold down the Shift key while
clicking on the down arrow one at a time until I have selected
all the text.
Next I will choose yellow from
the background color drop down list. This action
is demonstrated below which changed the cells background to
yellow.
|
|

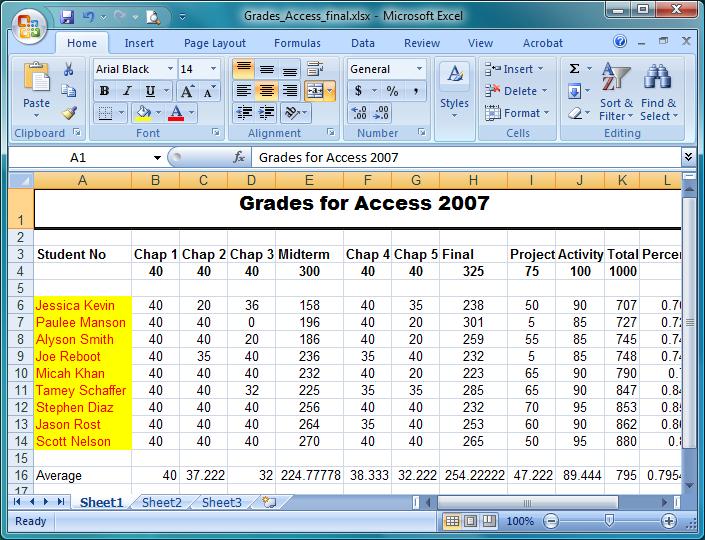

Next I will
choose Red from the font color drop down to modify the actual
text color.
This is shown below in the screen
capture. As you can see our grade book is not looking so
plain anymore. So far we have changed font type, font
size, bold option, background color and font color in
Microsoft Excel 2007.
|
|

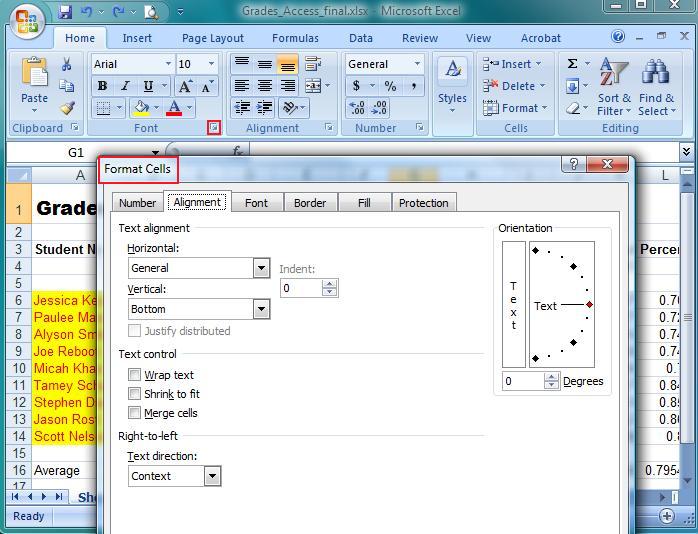

If you still need more options to
improve your font settings, you can certainly use the dialog
box launcher shown by the small red square below.
This will launch the Format Cells dialog box which should
look familiar from prior versions of Microsoft
Excel.
|
|
|
We will move onto of the Alignment Group
for the next set of exercises. Using the Alignment
Group in Excel 2007, you can control the position and layout
of text in your worksheet. In my case, I would like to
place all the assignments, project, midterm, final
test scores in the middle of my cells. This is
what needs to happen.

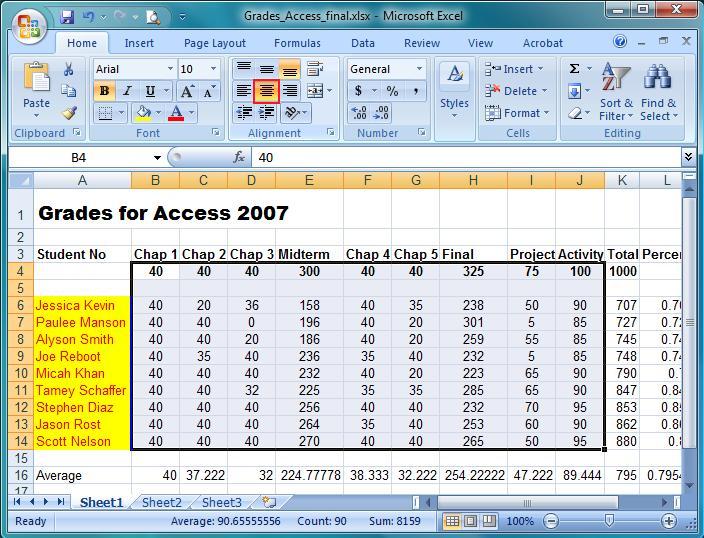

Highlight all the text from cells B4
through J14, Next choose the Center command in the
alignment tab under the Home Group in Excel 2007. This
will affect the horizontal alignment and position all the
scores in the center as shown below.
Very Nice!
|
|
Next I want to use Top Align
option under the vertical alignment section for the
text Grades for Access 2007. Before I
do this, I’m going to increase the first row height to 40
pixels. After I have changed the row height, I will go
ahead and select the text and then choose Center command from
the vertical alignment area.
This is what it
looks like in action.
|
|
You can also use the Alignment
Group to control some indentation in your excel 2007
sheet. This functionality is commonly used in word
processing like Word 2007, maybe not so much in a number
crunching application. We will skip over this option and
show you the same effect by using the Merge & Center
command.
The Merge and Center command is a cool feature
in Microsoft Excel 2007. In the prior versions of Excel,
I have struggled with this functionality, not anymore.
Lets us take a look at this feature.
Notice that
the text for Grades for Access 2007 spans a
few columns and is not in the
middle of my worksheet. I can easily achieve this
by using the Merge and Center command. I simply highlight the
entire first row from the columns from
A1 through L1, then select the Merge and Center command
as visible in the figure below.
|
|
When I
performed the above steps, it collapsed all columns
into one, center alligned
my text giving the heading a nice uniform feel that
we desired. Here is what this looks like on my puter
screen.
|
|
The last vital option under the Allignment
Tab is Wrap Text. This one is quite
beneficial when you have to some long text in an Excel Sheet,
however you would like to keep all the contents in one
cell, no problem.
You will notice on
the bottom of my excel sheet, I have text listed This is not
the final version. Notice that it spreads
across three columns. I would ideally like to wrap this
text in one column. I can easily do that using the
Wrap Text option, this is what you need to do. Highlight
the text and then click on wrap text command button,
Boom!
|
|
As illustrated by the following
figure, all the text has been wrapped into one cell,
Perfect!
|
|
The next group that we will talk about is the
Number group. Here we have the option to change actual
formatting for our data. Let’s take a look at the
average row which is 16 in the above screen shot. Observe
that the decimal formatting is all jumbled up. We
would like to use the number formatting with 2nd place
for decimal.
I will select
the row 16, click on the dropdown list and then select Number.
This acion fixed the formatting issue for all of
our Average scores.
|
|

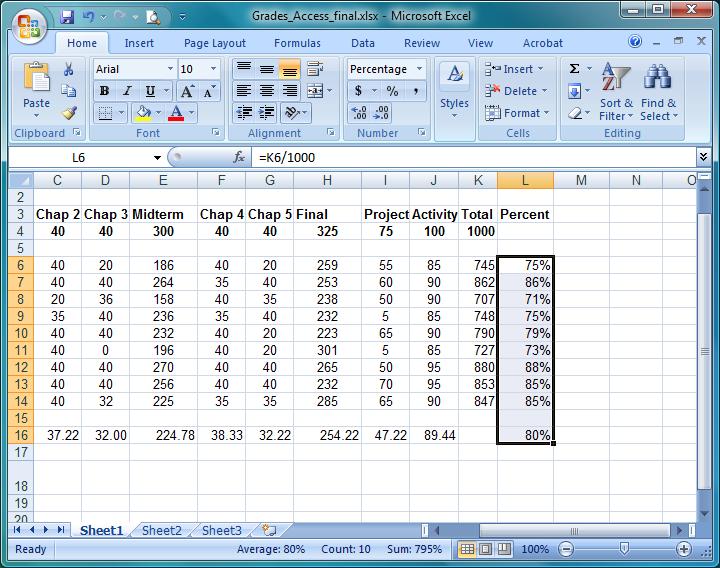

Similarly I
would like to change the Percents in column L to a format
where they are using the symbol instead of fractions. I
will go ahead and highlight the data and then select the
percent command under the Number group on the Home Tab in
Microsoft Excel 2007.
It went
ahead and converted the percentage numbers to the correct
format. The end result is visible right below in the two
screen shots
|
|
|
|
The
styles group in Microsoft Excel 2007 has a lot of interesting
options. Let us experiment with these one at a
time.
Here is a screen shot of the Styles
Group.
|
|
Using
conditional formatting, you can highlight your data using a
combination of color scales, icon sets, and data bars.
This will translate into a visual understanding off the
underlying data that you are trying to analyze. So in our case we
would like to use conditional formatting to analyze students
Total scores. We will first try the Data Bars
option and then play around with the icon sets.

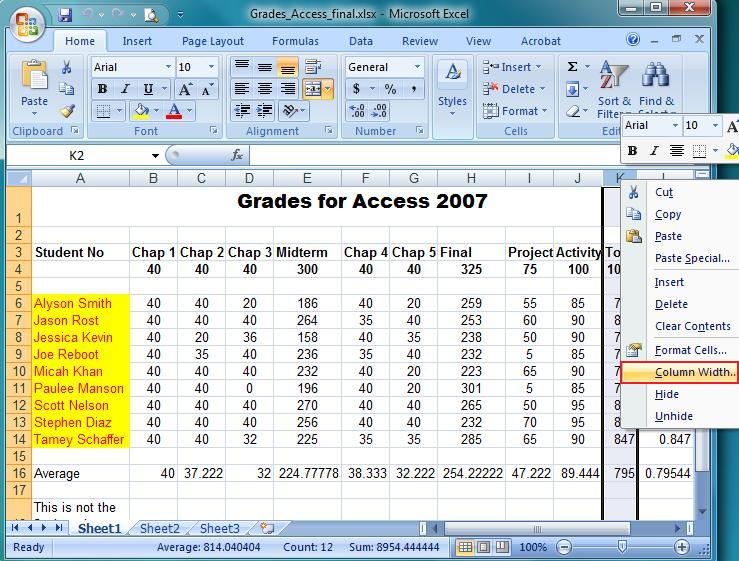

First we need to increase the size of K column so we can accomodate
all these cool analysis features. I will select the
column header, right click and chose Column Width. In the next
dialog box, I will type 10 for my width. This is displayed
below.
|
|
Now I am ready
to experiment with conditional formatting. I browse to
the Styles group on the Home tab Microsoft Excel
2007. From the drop down list, I will choose Conditional
Formatting. Next I will select Data Bars and then
decide on Green Data bars as it is my favorite color.
I have highlighted the steps in
the following screen capture.
|
|

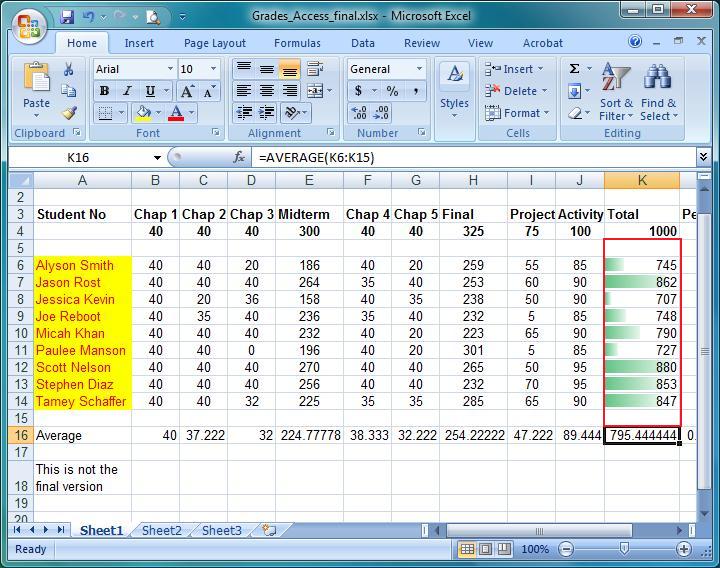

In the
following figure, You will notice that now in column K, we
have different sized green data bars along with the total
scores. The size of the bar indicates the underlying
data.
For example
student Jason Rost and Scott Nelson did quite well in our Access
2007 class. On the flip side, Paulee Manson and Jessica
Kevin did not do so hot. As you can
see, Conditional Formatting can give you a visual
clues about your data, Sweet!
|
|
I like this
powerful conditional formatting feature Microsoft Excel 2007
so I will try one of the Icon Sets next.
What if I wanted
to split my data into three groups, namely
excellent, average and poor. This time I will select
Conditional Formatting, Icon sets and then choose 3
circled symbols. This will yield the new
breakdown as shown below. We had really one student
around the average score and the rest were either in the high
or the low group.
It gives definitely another
perspective to my grade workbook.
|
|

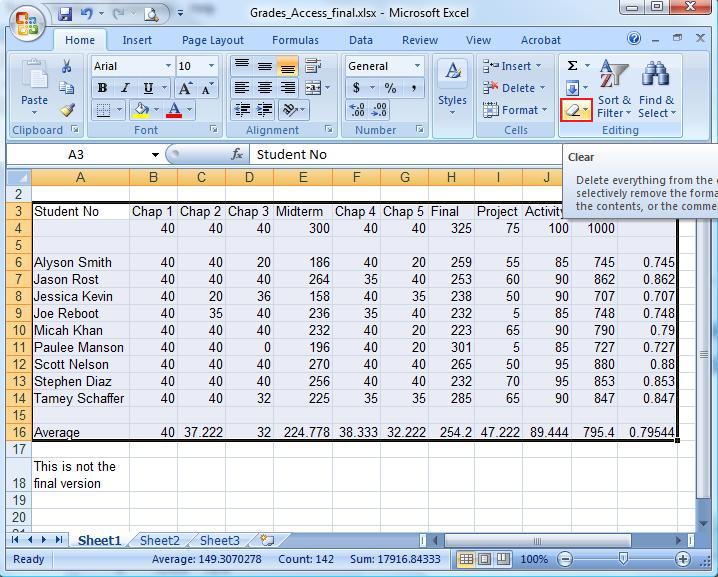

Before we move
onto the next command, I would like to clear the formatting in
my Excel 2007 sheet. I will first highlight the data as
shown below and then I will select clear command from the
Editing group. This will clear all the formatting that I
had as shown below.
This gives
us a plain look before we experiment with
Style galleries next.
|
|
The Format as
Table command will let
you use one of the predefined, readymade out of the box
styles in Microsoft Excel 2007. A style is a
combination of colors, font styles and graphical efeects that
give your documents a professional and unique look.
Let’s play around with these next.
I select the
student data from cell A3 through L16. Next I click on Format as
Table command in the Styles group. When I selected the drop down I was
given an ellaborate list of gallery styles as shown below. In
order to work with these styles, you can simply highlight the
text and choose one of the many pre-defined styles.
I
went go ahead and chose the style hightlighted by the red
rectangle below.
|
|
This action applied
a professional look to my student data as visible below. Notice that
it also gave me filter capabilities so I can definitely put
those to work if I desire.
|
|
|
At this point I would like to do a
Print Preview of how my Grades Workbook looks like. Here is
the Print Preview output from my computer. I have a nice title
followed by column headings and all the student scores look
aligned and professional.
|
|
The Cells
group is the next item that we are going to talk
about. Using the Insert command you can he can add
cells, rows, columns and worksheets. Let us say that we
need to add a row after the student Paulee Manson.

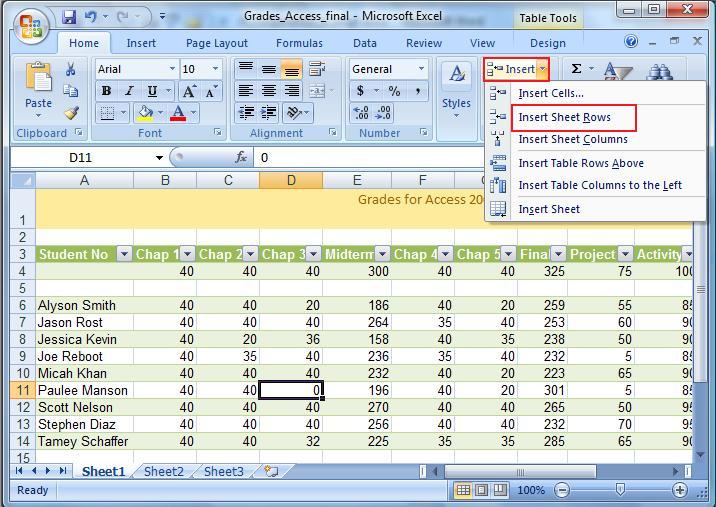

I will select my mouse
and then click on Insert Sheet Rows. The Insert options are shown
in the screen shot below. Please note
that we will cover insert and delete coneclpts in our video
training so be sure to check those out.
|
|
Let’s
assume what we did in the previous stpe
was a mistake and we would like to undo that action. You can
easily do that by using the delete command. Using the
Delete commands under the Cells group, you can delete cells,
rows, columns and the sheets.

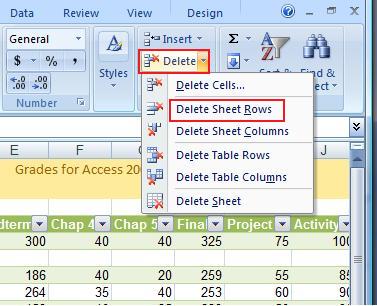

Here
are the possible Delete options.
|
|
The last
option is Format command in the Cells group in Microsoft
Excel 2007. This option has a host of menu options to choose
from. You can do things like to adjust row
height/column width, unhide/hide columns and rows and finally use the Auto Fit
functionality.
I would like to use auto fit on all my
columns. I will highlight them, click on the format drop
down and then select Autofit Column Width.
Here is a
screen capture of what this looks like.
|
|
The
last group we want to look at is the Editing group on
Microsoft Excel Home tab. The two commands that we will
talk about here are sort and filter plus find and
select.
The first one will let you sort data in
an ascending or descending order easily. If you
want to do asending order, you can select sort from smallest
to largest. Conversely if you want to use descending
order, you can sort from largest to smallestr.
Next you are
going to show you the custom sort. I would like to get a
glimpse of how all the students did overall. I could select the underlying
data which is in cells B6 through K14. Next select custom sort from
the Sort and Filter command. This will invoke the sort
dialog box as shown below.

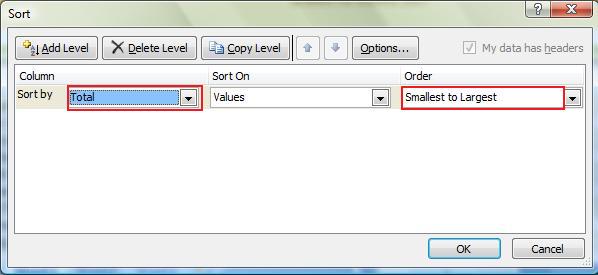

I will
choose column K (Total) and then select Smallest to
Largest under the order. When I did this, I was
able to see Jessica Kevin scored the lowest and
Scott Nelsen scored the highest.
This is displayed in the next two screen
captures below.
|
|
|
Finally the
last command that we will take a look at is Find and
Select.
In our example
this dataset is quite small, but let’s try this action
anyway. Say we were looking for someone with a last name
Smith. I would choose Find from the dropdown under Find
and Select. This will popup the Find and Replace dialog box as shown
below.
I will enter Smith and
in Find What and then click Find next. Notice that it was
able to find a student with that name in cell
A6.
|
|
Useful Links:
Access 100's of training courses for Free!!
http://www.bgsu.edu/downloads/cio/file15626.pdf
http://learn.pbsj.com/documents/excel-quick-reference-2007.pdf
http://video.about.com/spreadsheets/Adjust-Tabs-in-Microsoft-Excel.htm
http://www.wittysparks.com/2008/11/26/smart-microsoft-excel-2007-shortcuts/
|
|
